| List Price | : | $4,607.00 | |
|---|---|---|---|
| Our Price | : | Request Quote | |
| SKU | : | RAW-UTX1683BP7K | |
| Availability | : |
Email or call 208-265-0415 to confirm. |
|
RawMaxx Trailers are built to a higher standard than any other trailer in their price range.
Take a look at the competition and then come buy a better trailer for less money from RawMaxx.
You will not be disappointed!
| SKU | RAW-UTX1683BP7K |
|---|---|

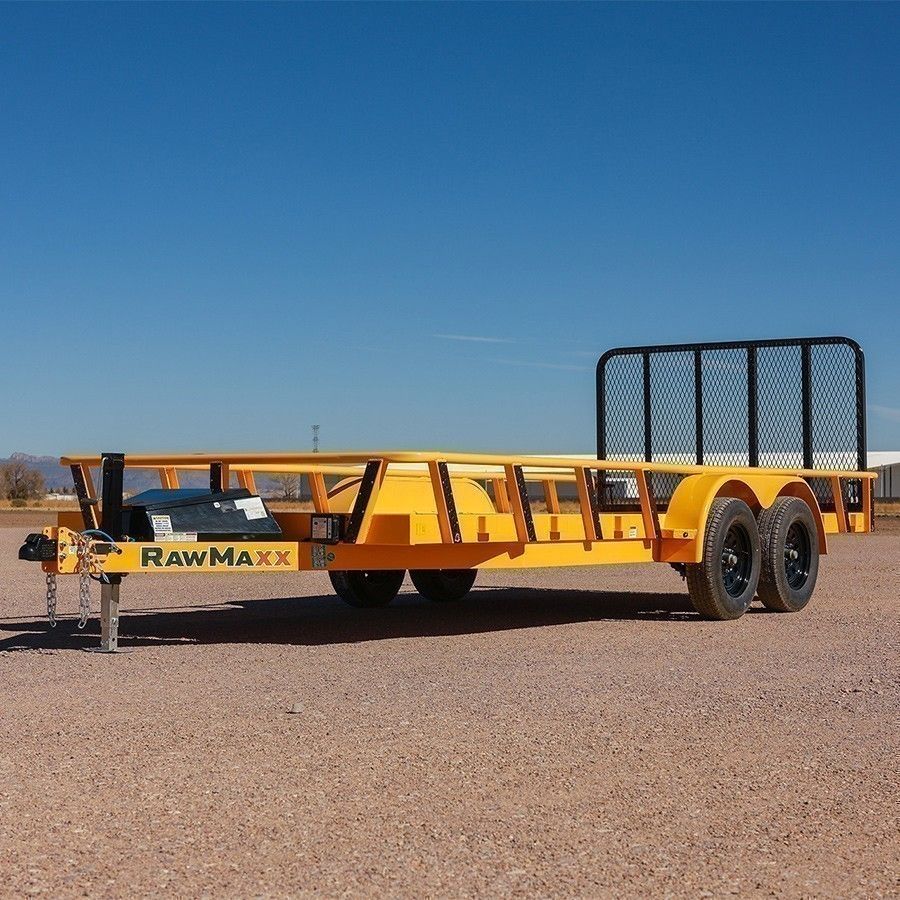

| Model | UTX1683BP7K |
| Length, Deck | 18' |
| Width, Deck | 83" |
| Height, Deck | 18" |
| Weight | 2271 lbs |
| Weight Rating | GVWR: 7,000 lbs. GAWR: 3,500 lbs. Empty Weight: 2,271 lbs. Load Capacity: 5,438 lbs. |
| Finish | Powder Coat |
| Hitch Connection Type | 2" Adjustable Ball Coupler |
| Jack(s) | Front Jack: 1 Side Wind Drop Leg - 7,000 lbs. |
| Tool Box | Optional |
| Tongue | Tongue Length: 40" |
| Safety System | Safety Chains: 1/4" G70 Safety Chains Breakaway System: Electric Breakaway Kit Reflective Tape: 3M DOT Compliant Reflective Tape |
| Frame / Deck | Deck Flooring: 2” Treated Lumber Deck D-Rings: 4 D-Rings (Welded on Deck) Side Side Perimeter: 4" Channel Main Frame Stake Pockets: 3-7/8" x 1-13/16" (ID) Fenders: 16G Round Fenders Frame Frame: 4" Channel Main Frame Cross-Members: 3" Channel / 16" on Center Rear Tail Strait deck: 4' Mesh Flip Ramp Side Rail Side Rail: 2" Round Tubing Rail Spare Mount Spare Tire Mount: Located front on Curbside |
| Color | Black (Other Colors Available/Optional) |
| Running Gear | Tires Type: Radial Tires Size: ST205/75R15 Ply: 8 Ply Rating: 2,040 lbs. Rims: 15” Black Mod Wheels Bolt Pattern: 550 Suspension Axle Type: Spring Axles: 2 Rating: 3,500 lbs. Brakes: On Both Axles Type: 4-Leaf Slipper Spring Suspension |
| Electrical & Lighting | Wiring Front Plug: 7 - Way Plug Frame Wiring: All Weather Wiring Harness Lighting Side Markers: 3/4" LED Bullet Lights Rear Lights: DOT Approved LED Lights |
| Warranty, Axles | 5 Year Dexter |
| Manufacturer's Warranty | 3 Year Structural / 1 Year Paint |
| Country of Manufacture | Mexico |
